SSO Setup Guide

This guide explains how to set up Single Sign-On (SSO) for your Deepdesk account using OAuth2 and OpenID Connect.

Microsoft Entra (Azure AD)​

Overview​

Setting up SSO with Microsoft Entra ID allows your users to authenticate using their existing Microsoft organizational accounts, providing a seamless and secure login experience.

Role Assignment

For information about automatically assigning Deepdesk roles during SSO login, see Automatic Role Assignment.

Prerequisites​

Before starting the setup, ensure you have:

  • Administrator access to your Microsoft Entra ID (Azure AD) tenant
  • Administrator access to Deepdesk Admin portal
  • The ability to create and configure OAuth applications in Entra ID

Information Exchange​

To complete the setup, you'll need to exchange information with your customer (or IT administrator):

Information to Provide to Customer​

  • Redirect URL: https://onboarding.deepdesk.com/oauth/callback/ (see Generic Callback URI below)
  • Required Scopes: openid email

Information to Receive from Customer​

The customer will provide you with:

  • Tenant ID: Your Microsoft Entra tenant identifier
  • Client ID: The application (client) ID from Entra ID
  • Client Secret: The client secret value

Configuration Steps​

1. Create OAuth Provider in Deepdesk Admin​

Navigate to the OAuth providers section in Deepdesk Admin and create a new provider with the following settings:

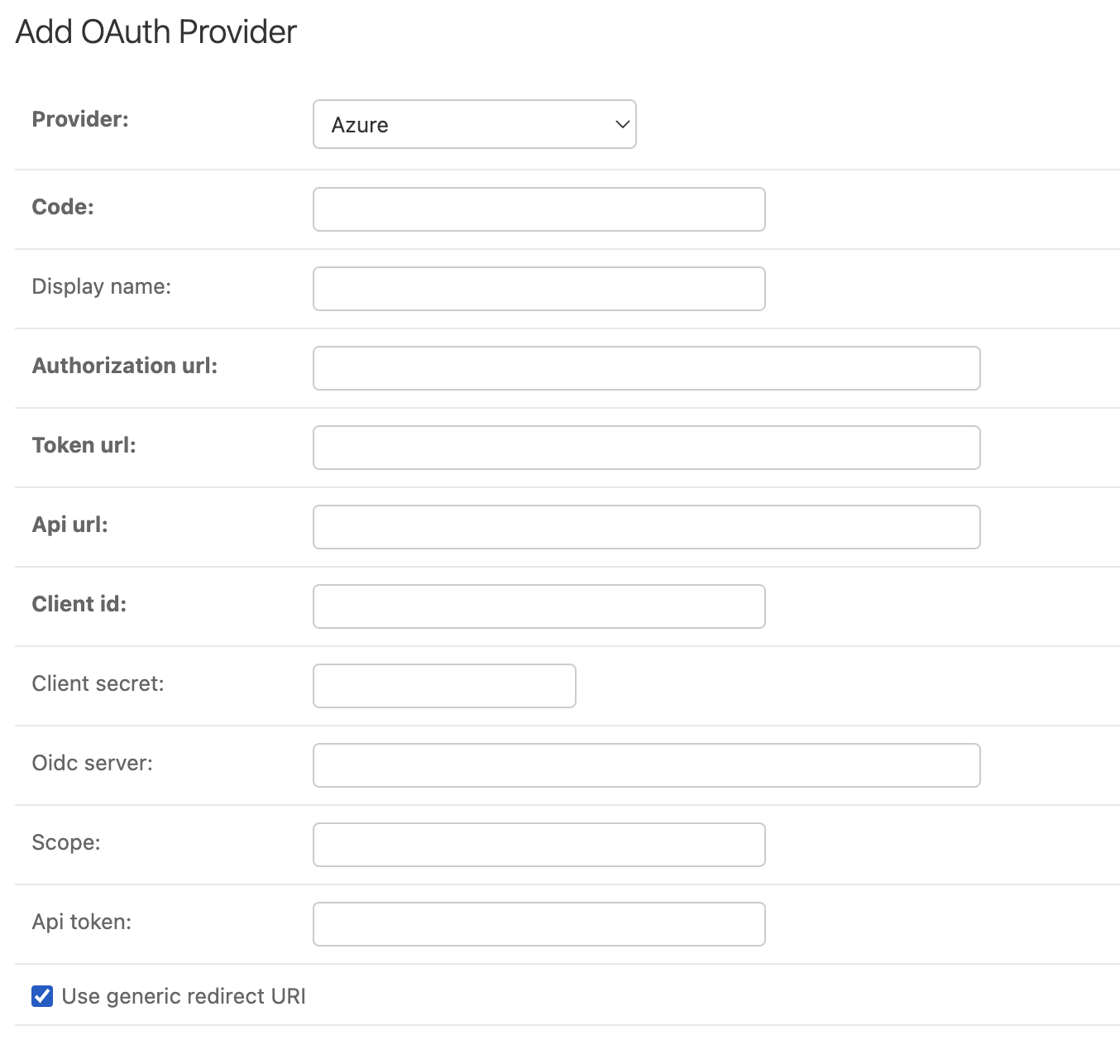

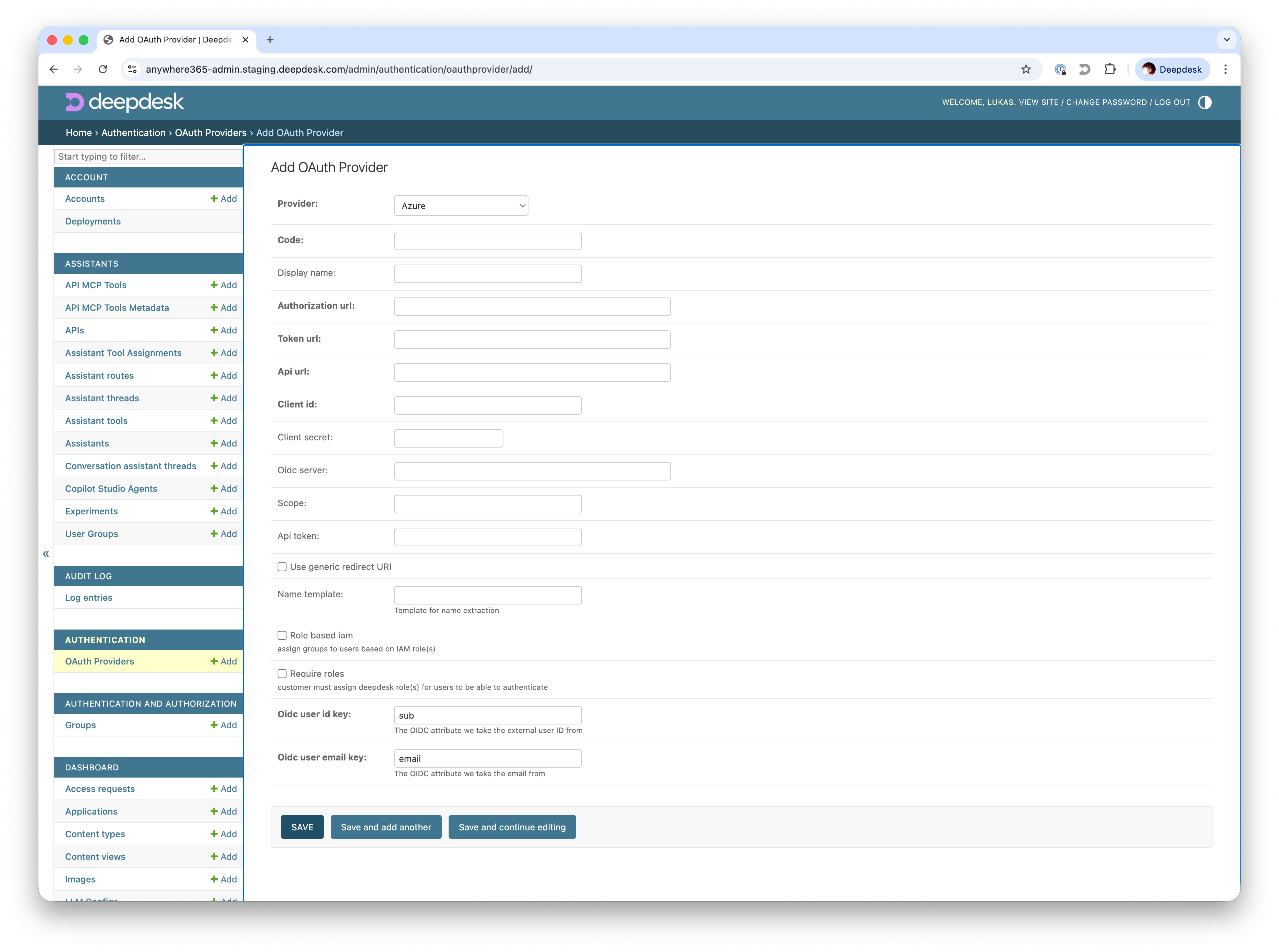

OAuth Provider Configuration

Provider Configuration:

  • Provider: Azure
  • Code: A human-readable identifier for this provider (e.g., customer-entra-id)
    • Must be lowercase and URL-safe
    • Used in callback URLs and internal references
  • Display name (optional): A friendly name for this provider
  • Authorization URL: https://login.microsoftonline.com/<tenant-id>/oauth2/v2.0/authorize
    • Replace <tenant-id> with the actual Tenant ID
  • Token URL: https://login.microsoftonline.com/<tenant-id>/oauth2/v2.0/token
    • Replace <tenant-id> with the actual Tenant ID
  • API URL: https://graph.microsoft.com
  • Client ID: The Client ID provided by the customer
  • Client Secret: The Client Secret provided by the customer
  • OIDC Server: https://login.microsoftonline.com/<tenant-id>/v2.0
    • Replace <tenant-id> with the actual Tenant ID
  • Scope: openid email (separated with spaces)
  • Use generic redirect URI: Enabled (recommended)

2. Set Active SSO Provider​

Configure which SSO provider should be used on the account's home page:

Active SSO Provider Configuration

Currently, Deepdesk displays one primary SSO link on the home page. You can configure which provider is used in the account's active platform configuration.

Once configured, users can start the SSO flow from:

  • The homepage SSO button
  • Direct URL: https://<account>.deepdesk.com/platform/sso

Generic Callback URI​

The "Use generic redirect URI" option determines which callback URL should be registered in the OAuth provider:

  • Callback URL: https://onboarding.deepdesk.com/oauth/callback/
  • Use case: Single global OAuth application registration shared across multiple accounts
  • Examples: Salesforce, NICE, or single-account setups

When Disabled​

  • Callback URL: https://<account>.deepdesk.com/platform/sso/<provider-code>/callback/
  • Use case: Account-specific OAuth applications
  • Replace <account> with the Deepdesk account subdomain
  • Replace <provider-code> with the provider code you configured

Testing the SSO Setup​

To verify the SSO configuration is working correctly:

  1. Navigate to the SSO start URL:

    • Via active provider: https://<account>.deepdesk.com/platform/sso
    • Via specific provider: https://<account>.deepdesk.com/platform/sso/<provider-code>/start/

  2. You should be redirected to the Microsoft Entra login page

  3. After successful authentication, you should be redirected back to Deepdesk

  4. Verify that you are logged in with the correct user account

Troubleshooting​

Redirect URI Mismatch​

  • Ensure the redirect URI registered in Entra ID matches your configuration
  • Check if "Use generic redirect URI" is set correctly

Invalid Client or Client Secret​

  • Verify the Client ID and Client Secret are copied correctly
  • Check for extra spaces or truncated values
  • Ensure the client secret hasn't expired in Entra ID

Scope Issues​

  • Confirm openid and email scopes are granted in Entra ID
  • Check if admin consent is required for your organization

User Not Created​

  • Check trial mode settings if users aren't being created automatically
  • Review access control configuration
  • See Access Requests for new user workflows

Other SSO Providers​

The general OAuth2/OIDC setup process is similar for other identity providers. Key differences:

  • Authorization and Token URLs: Provider-specific endpoints
  • Scopes: May vary by provider
  • Additional Configuration: Some providers require extra parameters

For provider-specific technical details, see the SSO Developer Guide.

See Also​
